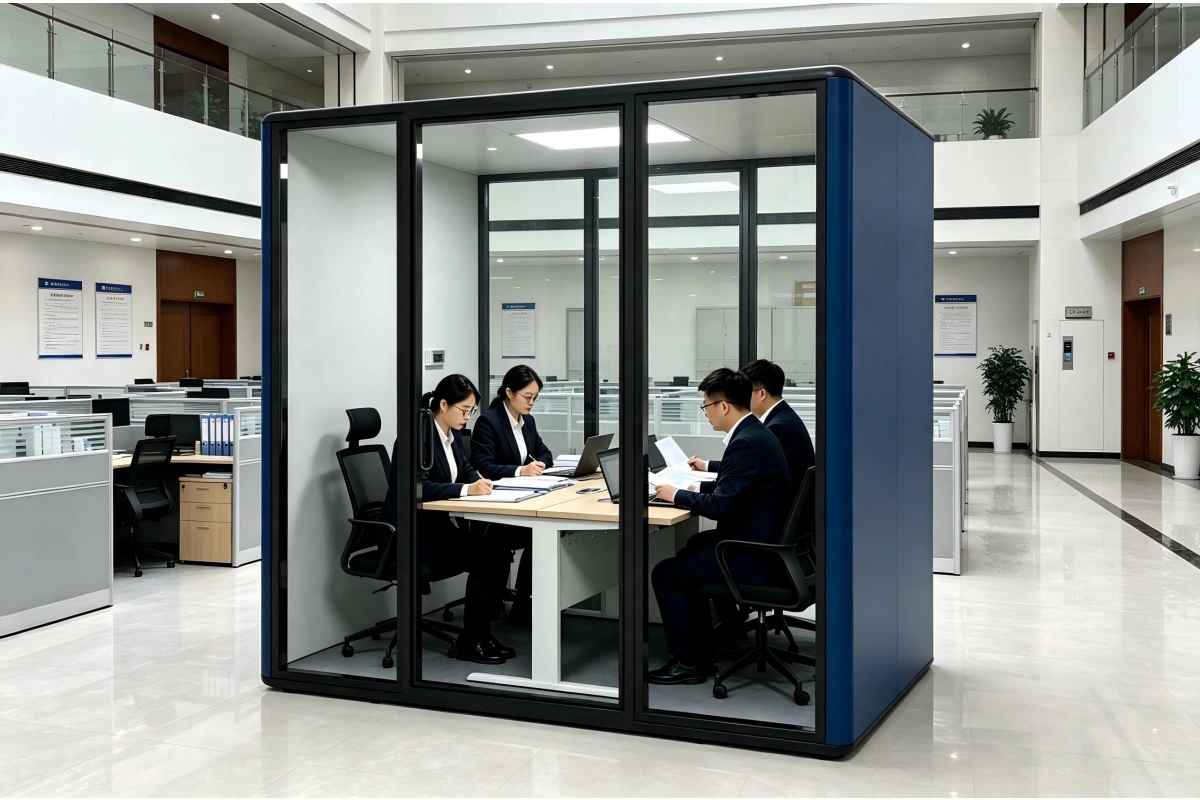

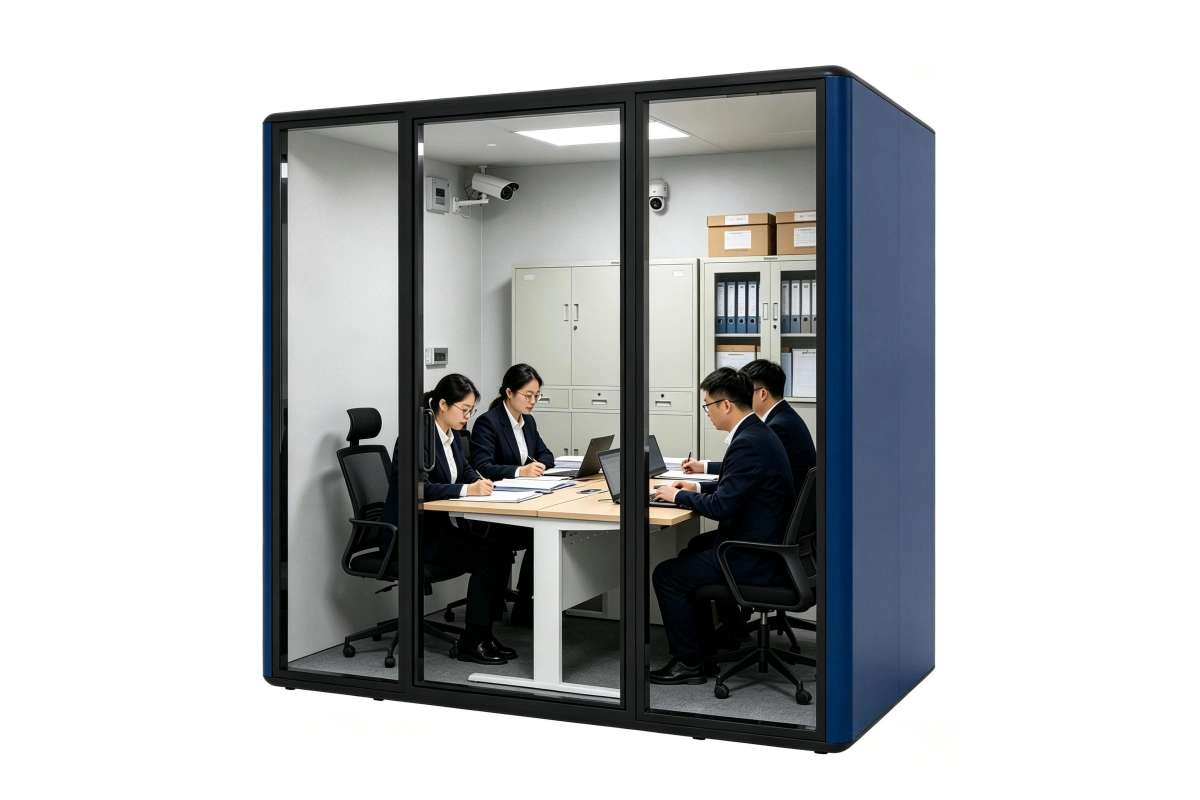

Tender evaluation acoustic booth Bid assessment soundproof pod Audit room confidential acoustic booth Government confidential acoustic pod supplier Confidential Bid Judging Acoustic Pod
Main Features & Applications:
- Excellent noise‑insulation structure cuts ambient noise efficiently, delivering a quiet, enclosed space for concentrated work and deep‑focus study.
- Ventilation system, built‑in LED lighting and adjustable air circulation guarantee long‑time indoor comfort without stuffiness.
- Compact, modular and movable design fits varied indoor layouts for quick installation and flexible relocation.
- Human‑centric acoustic cabin supports multiple‑scene usage, including private office calls, music practice, gaming and short‑term rest.
- Sound‑isolated enclosed cabin offers an independent quiet zone in open‑plan offices, homes, libraries and shared‑work spaces.
Share:
Product Features
Professional Multi-layer Acoustic Sound Insulation with Effective Noise Reduction & Controllable Quietness
Silent Fresh Air Circulation System Delivers Constant Temperature & Oxygen in Enclosed Space
Cost Reduction & Efficiency Improvement Empower Office Work and Optimize Enterprise Operation System
Modular Prefabricated Structure Supports Rapid Installation & Flexible Layout
Dual Privacy Isolation Prevents Information Leakage & External Disturbance
Comprehensive Integrated Configuration Features Exceptional Adaptability to Multiple Scenarios
Related Data
| Appearance & Structure | |
| Main Materials： | Steel, aluminum alloy, sound-absorbing cotton, laminated glass |
| Outer Frame Structure： | Aerospace-grade aluminum alloy with wall thickness ranging from 2.5 mm to 4.0 mm.The aluminum alloy surface adopts electrostatic powder coating, complying with GB/T 5237.4-2017 Aluminum Alloy Extrusions for Architecture – Part 4: Powder Coated Profiles. A total of 31 test items were inspected, all of which meet the requirements specified in GB/T 5237.4-2017. After acid salt resistance test, no blisters or other obvious defects appear on the coating surface; the solvent resistance grade of the coating reaches Grade 4. |
| Sound Pod Glass Material： | 5+1.14+5 mm tempered extra-clear damping laminated glass with black baking paint finish on all four edges, bonded with imported 3N adhesive. It features outstanding safety, high structural strength, excellent bending resistance, thermal stability and superior sound insulation performance. High safety rating with no sharp fragments upon breakage, and factory 3C certification available. |
| Side Wall Material： | 6-layer composite wall panels for the pod: Exterior: Double layers of eco-friendly 1.0 mm steel sheet with matte spray coating finish Internal frame: Shock-absorbing aluminum alloy skeleton Acoustic cavity with special treatment and filled sound-absorbing cotton Interior surface finished with high-density sound absorption panels |
| Intelligent Lighting System： | Standard built-in 4000K eye-friendly LED light with concealed installation and adjustable brightness. |
| Hardware Fittings： | Complete hardware set for glass door, including concealed hinges, concealed door closer, stainless steel handles, and 4 heavy-duty support wheels pre-installed on the pod base. |
| Sound-Absorbing Cotton Panels： | Eco-friendly compliant. Tested in accordance with GB/T 17657-2013; formaldehyde emission (climate chamber method, mg/m³) was not detected within 72 hours. |
| Intelligent Ventilation System： | Silent air exchange & exhaust system with adjustable airflow. Full air renewal inside the pod every 2 minutes. Electrical parameters: 220V voltage, 7W power, 3200 RPM rotating speed. |
| Switch Panel： | 1 set of control switches and compatible power sockets (100–240V mains socket + 12V USB port). |
| Overall Acoustic Performance： | Stable sound insulation performance of 32 dB (tolerance ±5 dB); reverberation time RT inside the pod reaches 0.3 s. |
| Remarks： | Only booth,Inside furniture just for scenarios reference purposes only, price no included. |
Standard Configuration List
- LED top human-sensing ceiling light
- Efficient silent ventilation fan system (air intake + exhaust, prevent stuffiness)
- Built-in power socket (USB port + AC power outlet)
- Foldable desktop inside
- Supporting rolling office chair
- Cable management hole for laptop/headset wiring
3. Key Advantage Module (Focus on Soundproof & Privacy)
Sound Insulation Performance
- Quantitative acoustic parameter: External noise reduction decibel value (e.g., 32dB / 40dB noise reduction)
- Working logic: Multi-layer sound absorption cotton + damping structure blocks external office chatter, keyboard tapping, printer noise
- Scenario benefit: Users make calls/hold video meetings without being heard outside; office ambient noise cannot interrupt internal work
Privacy Features
- Semi-transparent glass door: Ensure light transmission while shielding facial details from outside
- Fully enclosed independent cabin: Avoid line of sight from passing colleagues
- Closed space eliminates accidental eavesdropping for business confidential calls
Extra Functional Advantages
- Movable design: No fixed construction, convenient relocation with flat ground
- All-in-one assembly: On-site splicing without renovation, no damage to office floor/wall
- Humanized ventilation: Continuous air circulation, no oxygen shortage during long-time use
- Complete wiring system: Support laptop, headset, charger permanent placement
- Fire-retardant sound-absorbing materials: Meet commercial office fire safety standard
4. Multi-Scenario Application
List applicable occasions with matching scene pictures:
- Open-plan office: Daily customer calls, remote video conference
- Co-working space: Freelancer private negotiation
- Enterprise lobby: Temporary interview & confidential communication
- School library/education center: Online class, language oral test
- Hospital/government hall: Private consultation call
- Home office: Independent silent working nook
5. Detailed Dimension & Parameter Table
| Item | Specific Parameter |
|---|---|
| External Overall Size | W2.4xD1.8xH2.3m |
| Internal Effective Size | W2.268xD1.668xH2.164m |
| Door Size | Height & width |
| Net Weight | 1050KG |
| Sound Insulation Grade | 32dB+/-5 |
| Ventilation Air Volume | 120m³/h |
| Lighting Power | 7W |
| Input Voltage | 110V/220V optional |
| Main Material | Aluminum frame + soundproof felt + tempered glass |
| Installation Method | Splicing assembly, tool included |
| Customizable Options | Outer color, socket quantity, desktop style |
6. Structure Details Breakdown (English captions for each component)
- Anti-collision thick aluminum border: Anti-knock, stable structure, anti-deformation for long-term use
- Multi-layer sound-absorbing wall: Internal sound-absorbing cotton + damping board, dual noise blocking
- Magnetic silent door lock: Smooth opening/closing, no metal collision noise
- Top circulation ventilation: Low-noise fan, fresh air exchange
- Human body induction lamp: Auto light on when entering, auto off to save power
- Built-in fold table: Space-saving, for placing notebook & documents
- Soundproof floor mat: Reduce footsteps & chair rolling noise inside
7. On-site Installation & Transportation Info
- Packaging: Knocked-down carton packaging, fit for sea freight
- Installation time: 2 adults finish assembly within 60–120 mins
- No civil construction needed, suitable for all flat hard floors (tile, cement, wooden floor)
- Removable & reusable, can be disassembled and moved to new office locations
8. Custom Service Support
OEM & ODM acceptable for bulk orders；
Outer shell color customization (Pantone color matching available)
Upgrade configuration: Extra USB-C port, Bluetooth speaker, dimmable light
Logo printing service on cabin surface
Size customized for ultra-narrow/wide space demand
